RO Module Installation
1
Mount the RO Unit to the sink cabinet sidewall.
Place the unit towards the front and, tank at the back.
2
3
4
5
6
Final Tubing Connections:

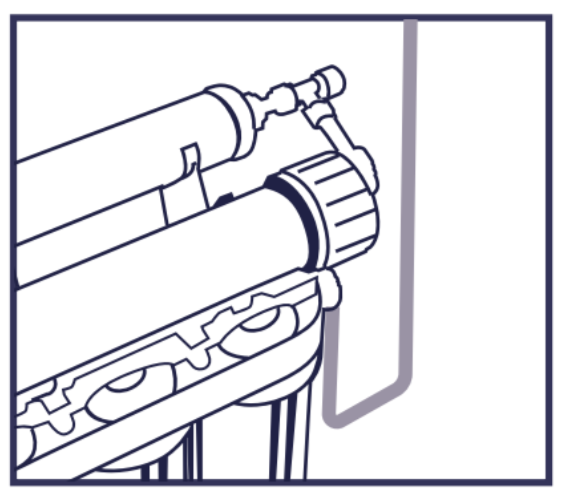

Connect blue tube from the faucet to the RO unit’s post-carbon filter outlet.
Ensure the storage tank's shut-off valve is closed before connecting the green tubing from the tank to the RO unit's post-carbon filter inlet. Leave the tank valve closed.
Attach the orange tubing from the angle stop supply valve to the RO unit at the sediment filter inlet on the far right.
Connect the 1/4" black tubing from the RO unit to the drain saddle.
Permeate Pump (Optional) Installation:
If present, secure the permeate pump to the
membrane housing with the bracket provided.
Connect tubing as labeled on the pump and follow the flow diagram.
Make the BRINE OUT connection as directed in the next step(s).
If a permeate pump is installed, connect tubing from the "Brine Out" port to the permeate pump and then to the drain saddle.
