All American RO Systems Support

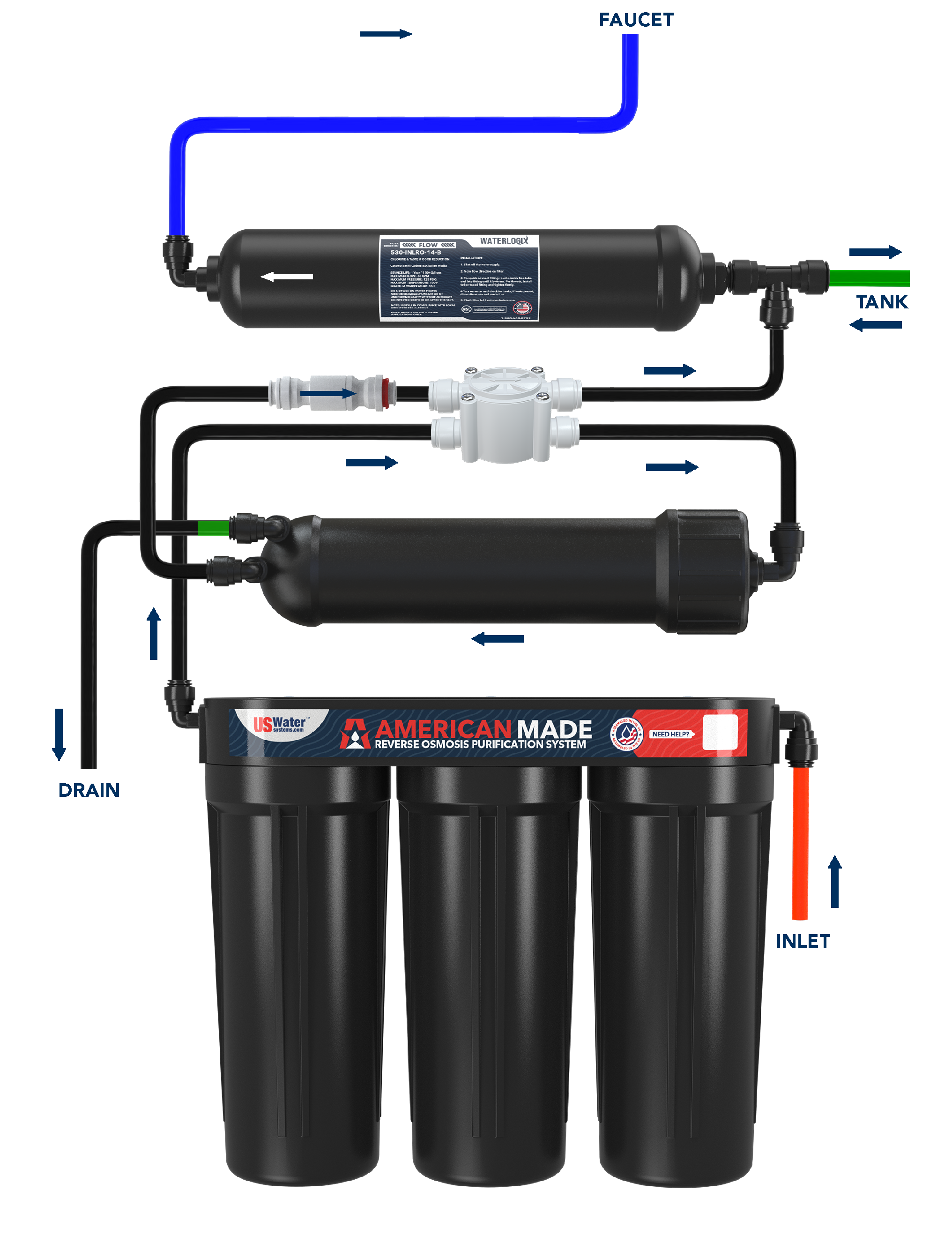

Like most RO Systems, the All American RO System uses 4 main points of connection to your existing plumbing fixtures. These connections are made with either 3/8 inch or 1/4 inch tubing. The storage tank only uses 1 connection that acts as both the inlet and the outlet.

1. Inlet (or Feed) Water

2. Drain

3. Tank Inlet/Outlet

4. Faucet

The tubing colors are:

• Orange: Feed

• Black: Drain

• Green: Tank

• Blue: Faucet
