Chemical Solution Tank Installation Instructions
1
Place the chemical solution tank close to the injection panel

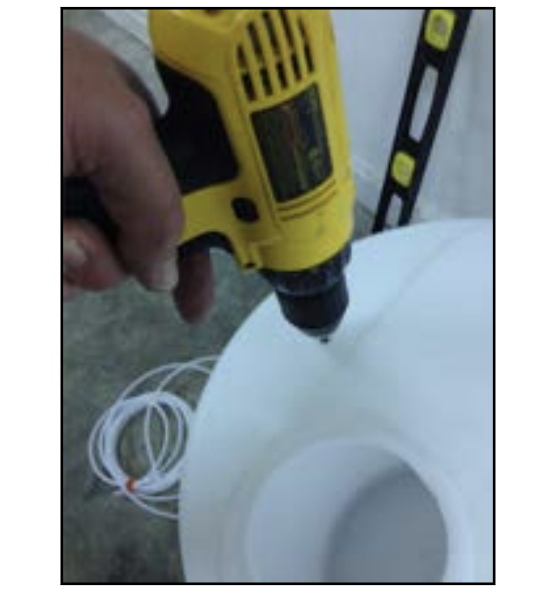

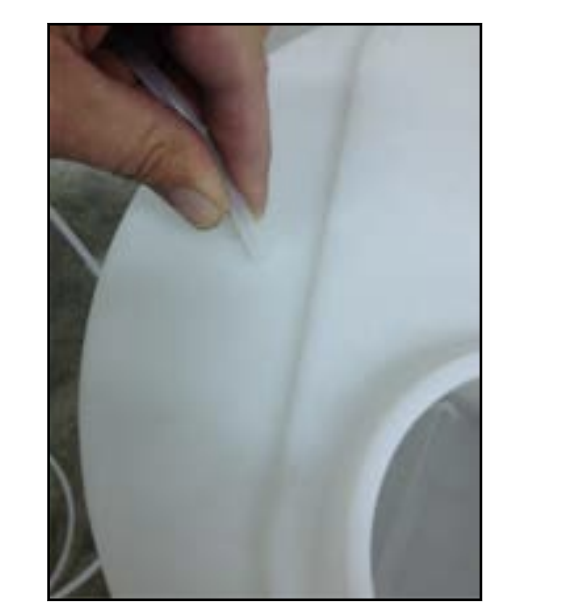

Drill a 1/4" hole in the top of the chemical tank. Push the 1/4" tubing in the hole in the tank.
2

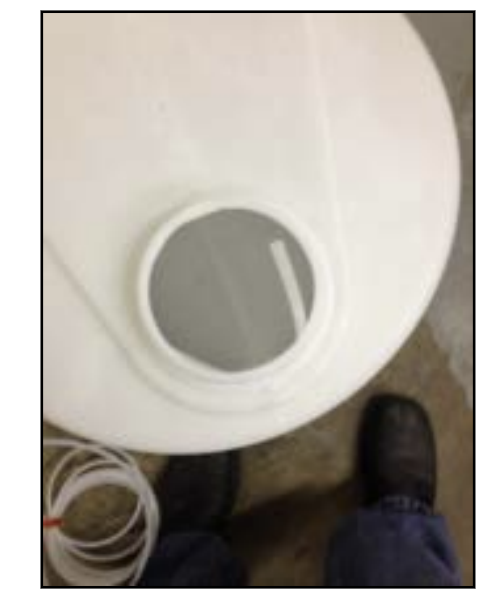

Pull the 1/4" tubing from inside the tank up through the fill hole
Then push on the weighted strainer on the 1/4" tubing.
3

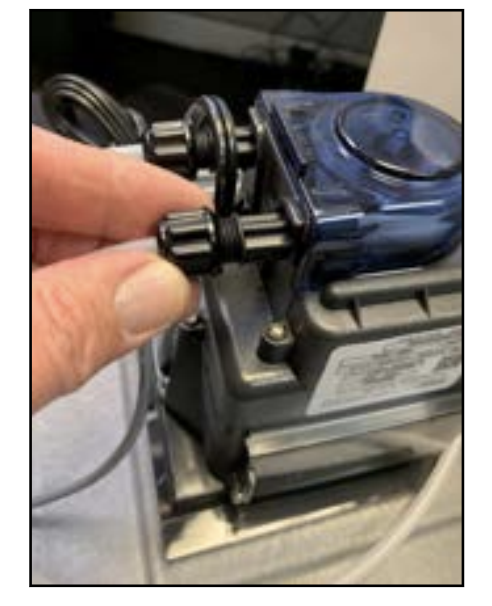

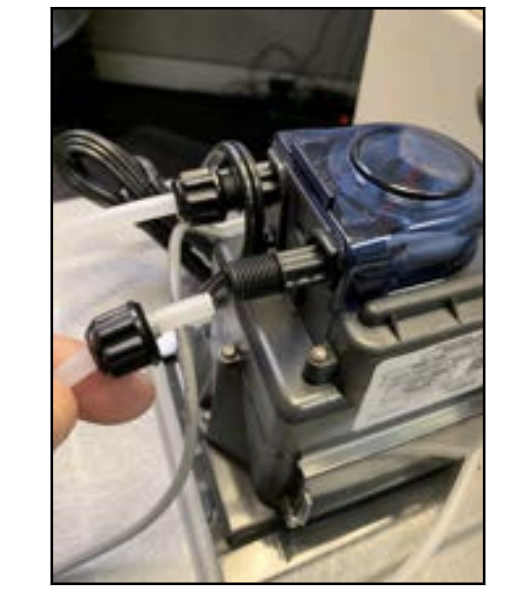

Install the other end of the tank suction tube to the chemical injection pump inlet
The inlet is identified by an arrow pointing toward the pump. Be sure the sleeve is installed on the tubing properly. The beveled side of the sleeve should be facing the pump. Tighten the nut hand tight while holding the pump fitting. Do not use tools or damage could occur. Hand tightening will be sufficient.
4

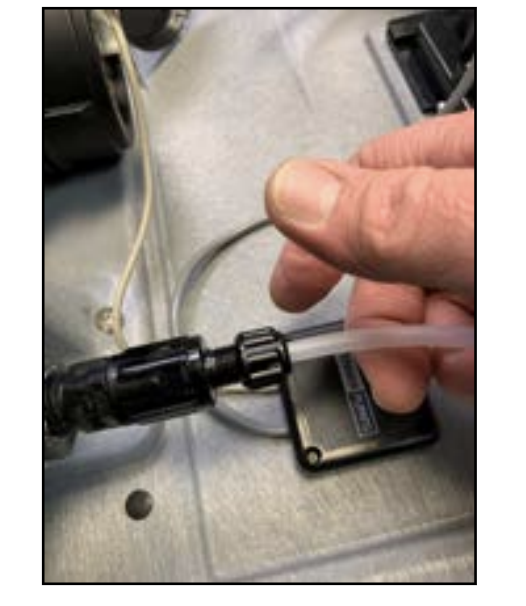

Remove the shipping sticker and install the tube from the flow indicator to the injection check valve
Tighten it hand tight.
